Toilet Waste Pump 12v & 24v

Part No. SFMTP1-07

Voltage:12V / 24V
Open Flow:12.0LPM / 3.2GPM
Ports:3/8" FNPT
Impeller Material:Copper

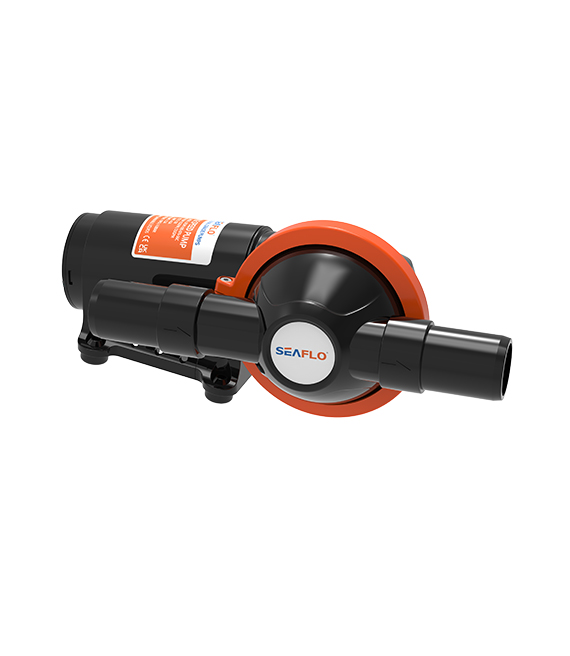

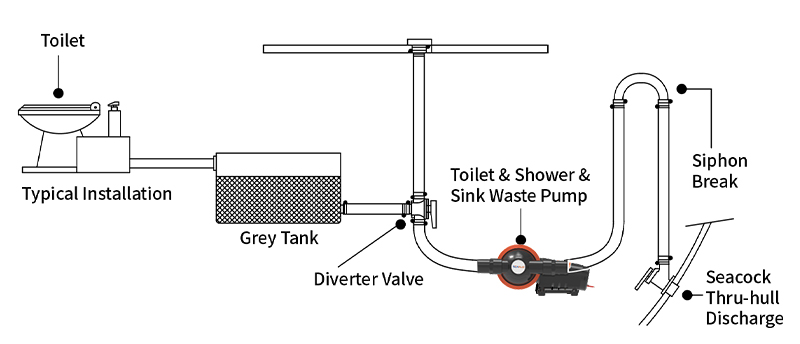

Single diaphragm waste pump designed to handle unmacerated black water toilet waste and Shower & Sink Drain Pump. Self-priming pump can be run dry. Non-choke valve, no filter required. Can pump a mixture of air and water. Double outlet valves to ensure continuous flow. Adjustable clamping ring allows the head assembly to be rotated 360 degree to accommodate plumbing position.
MORE FEATURES & BENEFITS
• Single diaphragm pump designed
• Uses multi-positional ports for easy mounting of the pump
• Flow up to 19 lpm (5 US gpm)
• Self-priming to 3m (9.5ft), dry run capability
• Connections for 38mm (1-1/2") or 19mm (3/4") ports

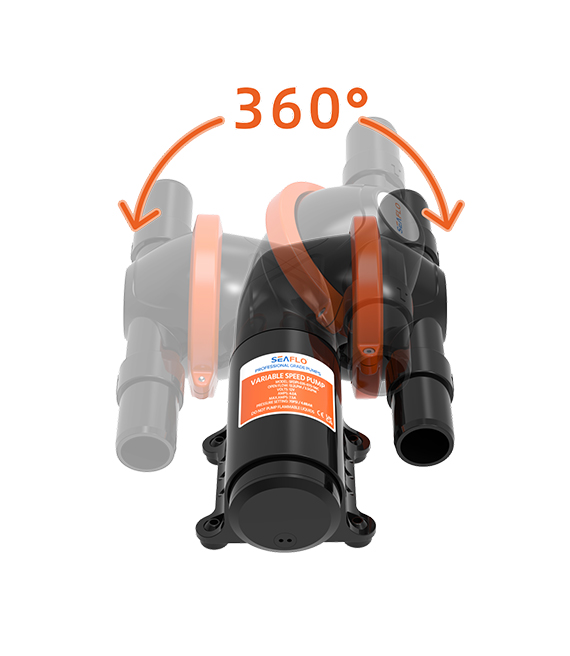

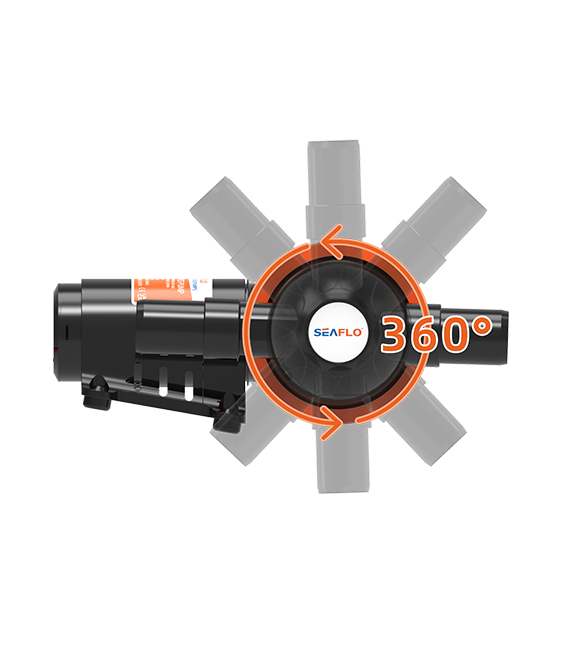

• The waste pump head assembly to be rotated 360° to accommodate plumbing
• No filter required
• Double outlet valves to ensure continuous flow
• 3 Years Warranty

Voltage:12V / 24V
Open Flow:12.0LPM / 3.2GPM
Ports:3/8" FNPT
Impeller Material:Copper

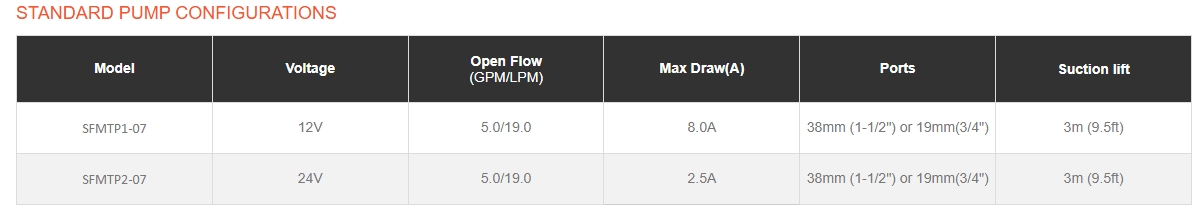

Product Table

Toilet Waste Pump

Part No. Capacity Specifications
SFMTPT1-07 12V
SFMTPT2-07 24V
5.0 GPM / 18.9 L/min 12V 8.0 Amp / 24V 2.5 Amp
38mm 1-1/2″ or 19mm 3/4″ ports
Ctn Qty: 6
